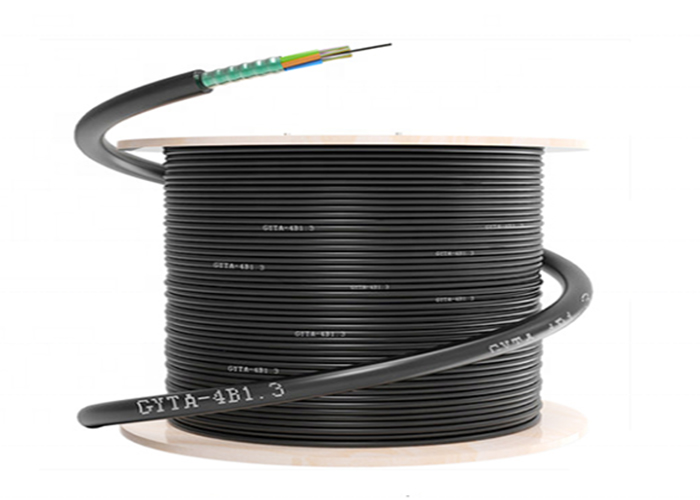

Outdoor Underground G652D SM Armoured Optical Glass Fiber Cable Optic Cable GYTA
Fiber cable information:
GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

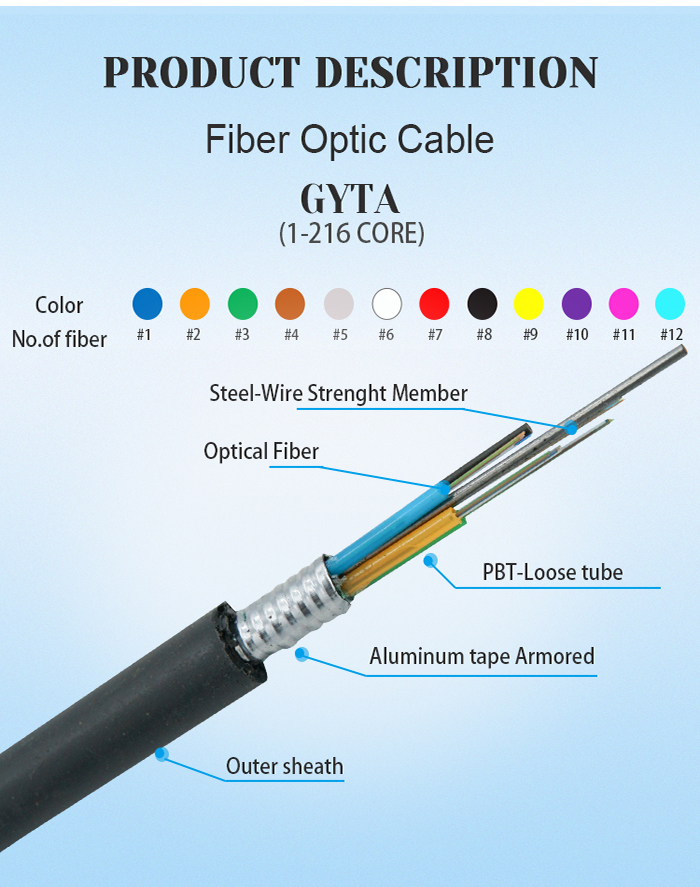

1. Product Construction
Fiber: 2-288 fiber
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire.
Armor: Aluminum Tape Armor
Outer Jacket: Black UV Polyethylene(PE)
2. Features
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Aluminum tape armor to protect cable from mechanical damage.
UV and waterproof design.
3. Application
Interbuilding voice or data communication backbone.
Installed in duct, underground conduit.
| Cable Parameters |
| Items | Specifications |
| Fiber Count | 2~24 |
| Colored Coating Fiber | Dimension | 260µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White |
| Loose Tube Dimension 2.10mm±0.05mm | Dimension | 2.10mm±0.05mm |
| Material | PBT |
| Color | Natural |
| Strength Member | Diameter | 1.0mm |
| Material | Steel |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE |
| Color | Black |
Other Main Parameters FYI:
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic |
| GYTA53-2-6 | 2-6 | 1 | 5 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-8-12 | 8-12 | 2 | 4 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-14-18 | 14-18 | 3 | 3 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-20-24 | 20-24 | 4 | 2 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-26-30 | 26-30 | 5 | 1 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-32-36 | 32-36 | 6 | 0 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-38-48 | 38-48 | 4 | 1 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-50-60 | 50-60 | 5 | 0 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-62-72 | 62-72 | 6 | 0 | 15..9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-74-84 | 74-84 | 7 | 1 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-86-96 | 86-96 | 8 | 0 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-98-108 | 98-108 | 9 | 1 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-110-120 | 110-120 | 10 | 0 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-122-132 | 122-132 | 11 | 1 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-134-144 | 134-144 | 12 | 0 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-146-216 | 146-216 | | | 21.3 | 395 | 1000/3000 | 1000/3000 | 10D/20D |
GYTA53 12/32 core fiber optic cable , 250um, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
